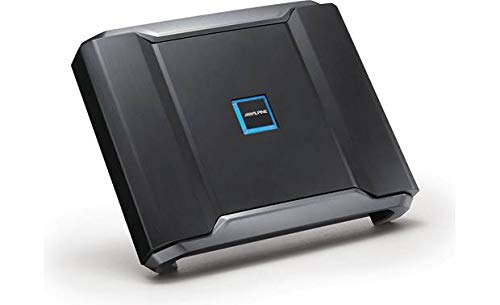

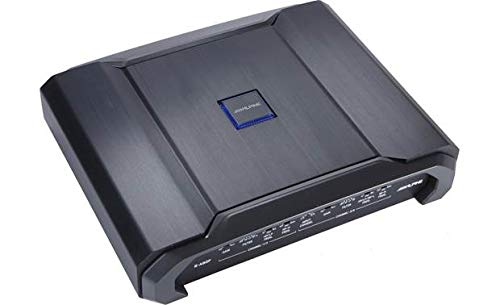

Alpine R-A60F 4/3/2 Channel Class D Amplifier (RMS: 100W*4 (4Ω) 150W*4 (2Ω))

The new R-series amplifier come with new technology that produce high power and accurate imaging. Also, having a built-in bandpass filter which lets you design an active speaker set-up without a separate processor. Let’s experience the great sound you’re looking for. This is a perfect power matching item for R-series speakers and amplifiers to get better experience.

Hi-Resolution audio compliant
    The R-series amplifiers utilize Alpine’s advanced amplifier platform that circuit and adds dual post-filter feedback loops for unmatched and accuracy and control. This technology produces efficient power with enhanced dynamic range.

Experience with sound quality
    This new technology minimizes audible imperfections like excessive phase shift and internal noise which can deteriorate sound quality.

Tune your music for your style
    Tuned for a proper sound stage to make your music sound even better, no matter the genre you prefer.

Built-in bandpass filter
    Having a built-in bandpass filter which lets you design an active speaker set-up without a separate processor.

The Alpine R-Series Sound Components
    The R-Series lineup is “The Loudest Family on the Block”. The products are designed to be played loud, delivering a fun and exciting listening experience, and are known for dependable performance and high-quality sound. All R-Series components are developed to perfectly match each other.

Small Footprint
    Compact and Powerful: the new digital amplification circuit allows high power output while keeping a small footprint. The R-A60F measures just 274mm in width x 223mm in length for easy installation in virtually any vehicle.

Thermal Protection
    Along with Alpine’s new intelligent amplifier platform, the new R-Series amplifiers feature an improved heat sink and protection circuit design that eliminates thermal shut-down, for dependable music playback.

Extensive Tuning Options
    R-Series amplifiers have a built-in bandpass filter which lets you design an active speaker set-up without a separate processor. Improve the sound quality of component speakers by ditching your passive network.  Avoid added phase shifts and power losses by individually powering each component and assigning your own frequency bands for the incredible sound you’re looking for.

Low/High-Power Speaker Signal Inputs
    The 4-Channel RCA speaker signal inputs accept low and high-power signals (RCA cables with open leads requirredd, available separately). This makes it easy to connect the R-A60F directly to your original car stereo, regardless of your head unit’s power output.

Control Your Subwoofer
    You can connect the RUX-KNOB2 remote bass knod (optional available) to the R-A60F to controll the subwoofer level (channel 3 + 4 bridged) straight from your dash.

Features:

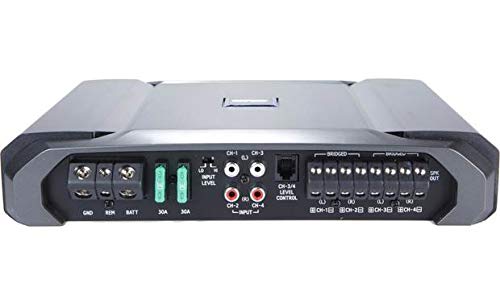

• Terminal Layout: One side
• Small footprint for easy installation
• Screw terminals (for speaker and power cables)
• Amplifier Type: Class-D (Digital)
• Channel Design: 4/3/2 Channel
• Thermal Management Control
• Top Mounted LED Power/Status Indicator
• Speaker Level Input with remote turn on
• Crossover: Adjustable Low-pass (LPF), High-Pass Filter (HPF) and Band-Pass Filter
• Gain Control: Adjustable
• Bass EQ
• Remote Bass Control (RUX-KNOB2) Ready (for channel 3+4 in bridged mode only)

Specifications:

• Max Power Output Ratings
• Total Max Power: 1200W
• RMS Power Ratings
• Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 4 x 150W
• Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 4 x 100W
• Bridged, 4 Ohms, 14.4V: 2 x 300W
• Sound Tuning
• Crossover: Variable HPF/LPF: 50-400Hz (-12dB/oct )
• Crossover: Variable HPF-H: 400Hz-6kHz
• General
• Power Requirements: 14.4 V.DC (9 - 16 V allowable)
• Input Sensitivity (RCA Input): Hi: 0.5V - 10V / Low: 0.2V - 4.0V
• High Level Input with automatic power on
• Cable size: Power Cable AWG 4, SPK Cable AWG 8
• Frequency Response (+0/ -3dB: 1W into 4 Ohms): 10Hz – 45kHz
• THD+N (@ 10W into 4 Ohms): <0.03%
• Damping Factor: >500
• Weight: 3.2kg
• Dimensions
• Heat Sink (WxHxD) mm: 273 x 50.8 x 200
• With attached brackets: 273 x 50.8 x 223

What's in the BOX

• 1* 4-Channel amplifier
• 2* 30-amp ATO fuses (installed)
• 2* 4 Mounting feet
• 4* 3/4" Screws
• 8* M2.5x5.5mm Machine screws
• 1* 2mm Allen wrench
• 1* 3mm Allen wrench
• 1* Owner's manual (English/ French/ Spanish)
• 1* Warranty Card
